Description

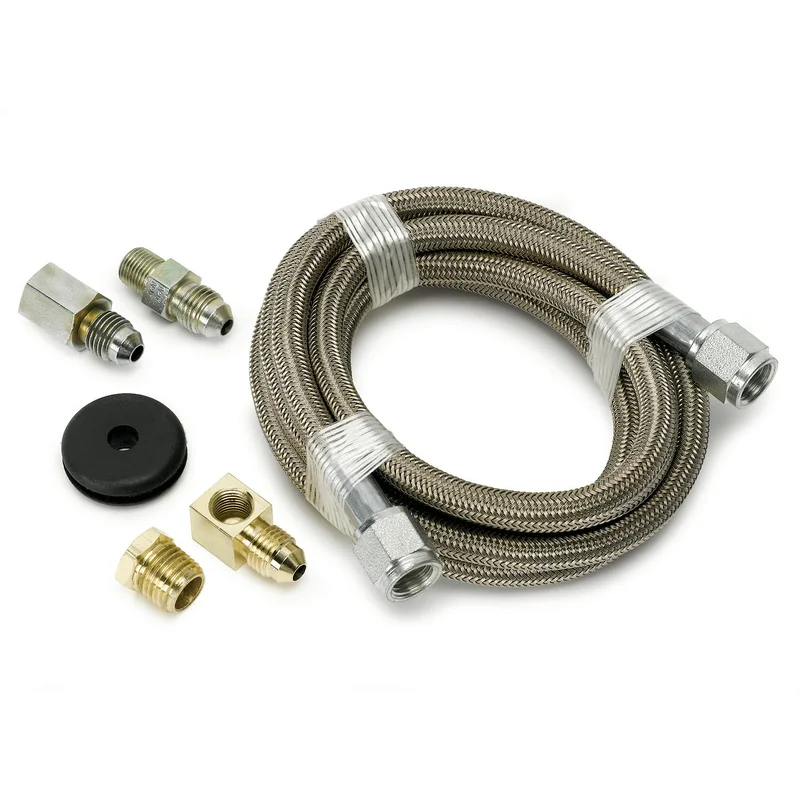

LINE; BRAIDED STAINLESS STEEL; #4 DIA.; 6FT. LENGTH;-4AN AND 1/8in. NPTF FITTINGS Includes 6ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8 in. NPT female right angle to -4AN male fitting, -4AN male to 1/8 in. NPT male fitting, -4AN male to 1/8 in. NPT female fitting, 1/8 in. NPT to 1/4 in. NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
- For Mechanical Pressure Gauge
- Incl. 1/8 NPMT To 4AN Female Straight
- Incl. 1/8 NPFT To 4AN Male Straight
- Incl. 1/8 NPFT to 1/4 NPMT Straight
- Incl. 4AN To 1/8 NPFT 90 Deg. Fitting
- Type 304 Braided Stainless Steel Hose
- 6 ft. Hose Length
- PTFE Lined Hose That Is Resistant To Most Fluids
- Maximum Operating Pressure-3000 PSI
- Operating Temp -65 to 450 Deg. F
- 12000 PSI Burst Pressure
