MSD Performance 6530 MSD Digital Programmable 6AL-2 – Red

Description

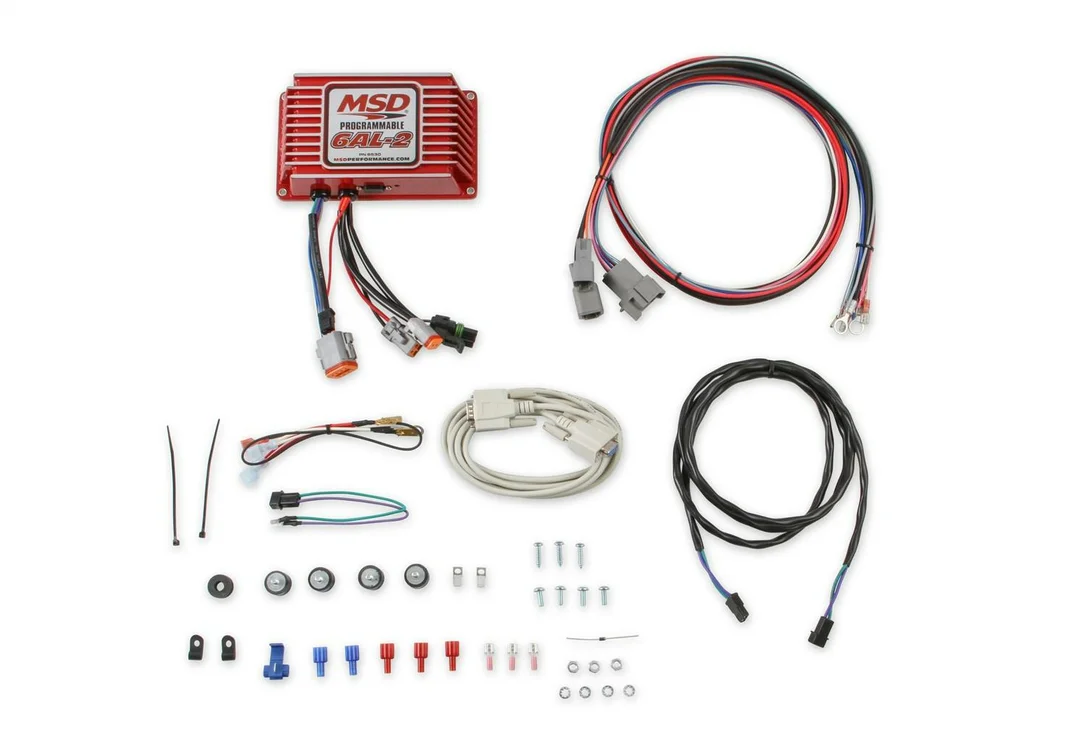

Universal – Tune Ignition Curve or Boost Timing Map from PC The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.

• 12-18 Volts, Negative Ground
• Plot a boost timing map with 0.1° per psi accuracy
• 12,500 RPM with 14.4 Volts
• .7 Amp per 1,000 RPM
• PC Programmable with easy-to-use Windows based Pro-Data +Software
• Programmable 3-Step Rev Limiter (100 RPM increments)
• EO # D-115-21
• Capacitive Discharge technology for fast rise time and maximum spark energy
• Advanced features allow for use in street and racing applications
• Step retard for nitrous applications plus a boost timing map

Information:

CARB EO: D-115-21
