Description

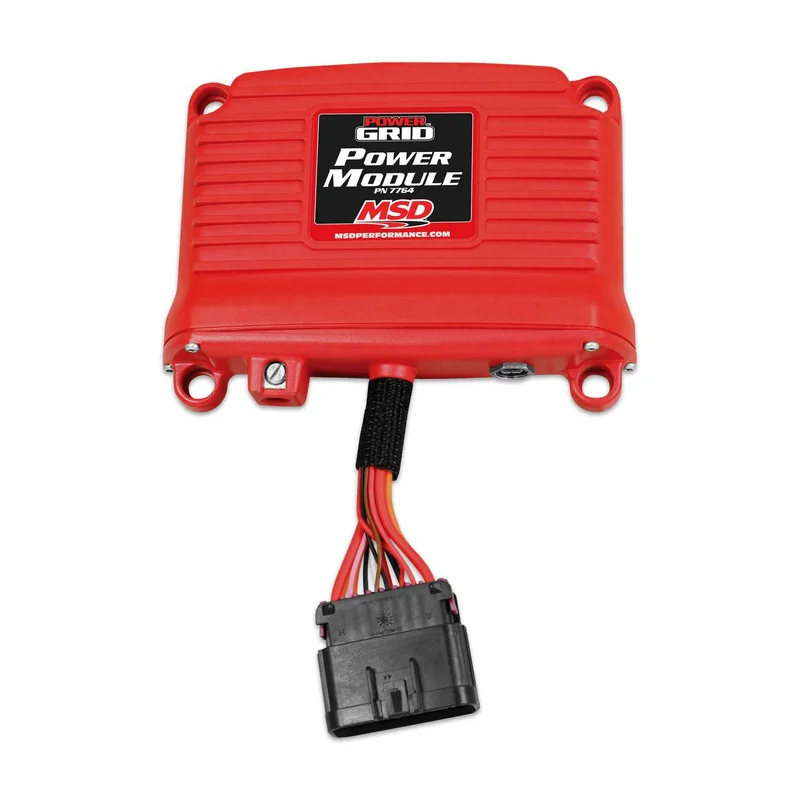

When connected to the Power Grid it will data log all the functions including Time from Launch, time or rpm of activation and deactivation. A High Speed Data Logger can be used to record all functions when paired with the MSD PN 7730 Power Grid.
- Each channel is controlled via input wires or as programmed in the MSDView software
- Takes the place of 4 electromechanical relays
- Can be used stand alone or with MSD Power Grid PN 7730
- Available in Red (P/N 7764) or Black (P/N 77643)
- 80 Amp capacity, 4 channels rated up to 20 Amps each
- Data Acquisition available when used with MSD Power Grid
- Built-in overcurrent protection, no fuses needed
- Trigger signals can include power, ground, temperature, or time
Application Summary:
| Year | Make/Model |
|---|---|
| 4 | Channel programable solid state relay with data acquition capability |
| eliminates | the need for electromechanical relays |
| fuses | and timers |
