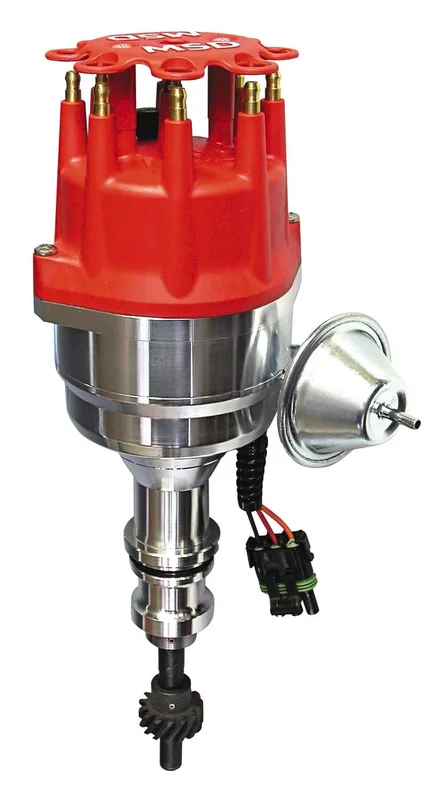

MSD Performance 8352 Ford 289/302 Ready-To-Run Distributor

Description

Ready-to-run distributors include a built-in ignition module. No MSD Ignition control required. Includes an iron gear and a rev limiter The billet aluminum housings of these distributors are 5/8″ smaller in diameter to accommodate induction setups and tight engine compartments. A maintenance-free magnetic pickup is responsible for triggering the high voltage sparks while a sealed ball bearing guides an oversized shaft.

• Nylon pads ensure smooth operation of the advance weights
• Simple and clean installation with only three wires to connect
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• CARB E.O. Approved
• Powerful built-in module produces a 7.5 amp single spark through high rpm
• Vacuum advance canister for improved economy (can be locked out)
• CNC machined billet aluminum housing and billet aluminum base
• Does not require an MSD Ignition Control
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Now includes built-in Rev Limiter!
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Housing is 5/8” smaller in diameter than stock Ford distributors
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Advance weight pins are staked and tig welded to the plate
