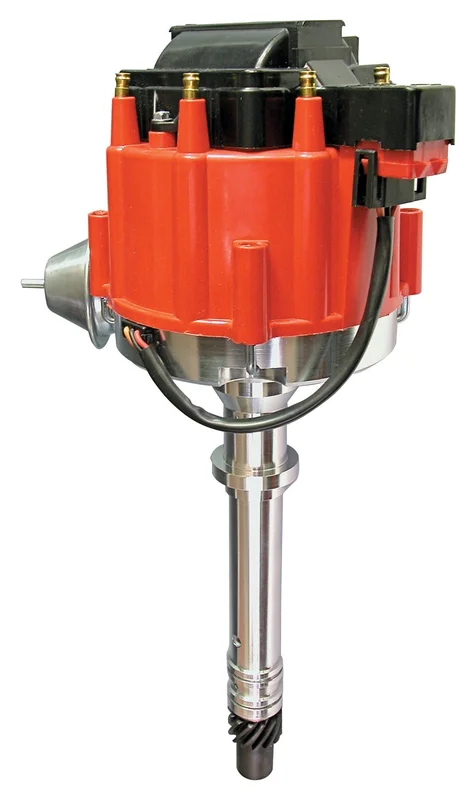

MSD Performance 8365 GM HEI Billet Distributor

Description

Replaces GM HEI Distributors that use a 4-Pin ignition module. MSD answers the need for a strong, accurate and high performance HEI with our Pro-Billet HEI. The distributor is supplied with our Digital HEI Module and Coil so there is plenty of spark energy combined with improved dwell and timing control.

• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Supplied with brass terminal distributor cap and rotor
• A complete performance HEI distributor upgrade for Chevy V8 engines
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• CARB E.O. Approved
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Full spark energy output to 9,000 RPM
• Vacuum advance canister for improved economy (can be locked out)
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can easily be locked out
• Special oil tract improves lubrication to the distributor and cam gear
• CNC machined billet aluminum housing and billet aluminum base
• Supplied with a 8.5 amp, single spark, inductive discharge ignition module, MSD PN 83647, and MSD HEI Coil, PN 8225
