Description

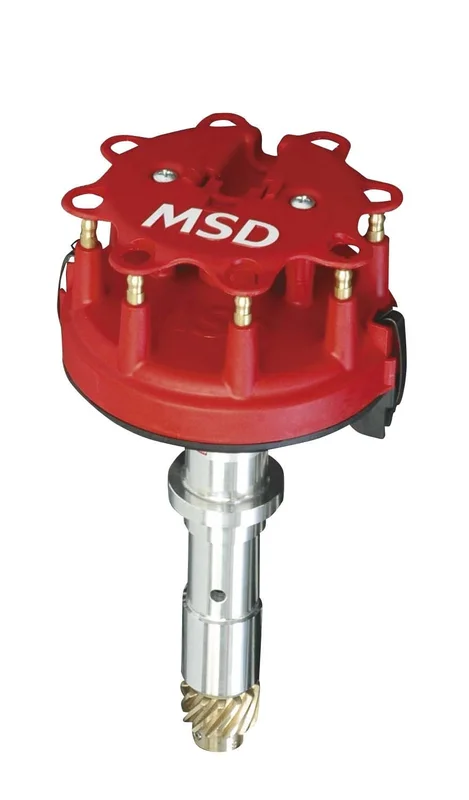

Low-profile, tall block, racing distributor, must be used with an MSD 6, 7 or 8-series ignition and a crank trigger. transferring the high voltage of the MSD racing ignition to the spark plugs.
- Oversized polished steel shaft with a QPQ coating for friction reduction
- Designed to fit low in the block to clear firewall and intake combinations
- O-ring seals can be added to modified blocks to improve oil pressure control
- Adjustable slip collar mounting flange for engines with modified deck heights
- CNC machined billet aluminum housing and Dupont Rynite base
- Supplied with bronze gear
- Shaft is guided by a sealed ball bearing and an extra long sintered bushing
- Supplied with large diameter HEI style distributor cap and rotor
- Special oil tract improves lubrication to the distributor and cam gear
- Must be used with an MSD Crank Trigger and MSD Ignition Control
Application Summary:
| Year | Make/Model |
|---|---|
| 1955-1974 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1961-1974 | Chevrolet C10 Pickup |
| 1967-1974 | Chevrolet C10 Suburban |
| 1961-1974 | Chevrolet C20 Pickup |
| 1967-1974 | Chevrolet C20 Suburban |
| 1961-1974 | Chevrolet C30 Pickup |
| 1967-1974 | Chevrolet Camaro |
| 1966-1974 | Chevrolet Caprice |
| 1964-1974 | Chevrolet Chevelle |
| 1963-1968 | Chevrolet Chevy II |
| 1955-1972 | Chevrolet Corvette |
| 1974 | Chevrolet Corvette |
| 1958 | Chevrolet Del Ray |
| 1959-1960 | Chevrolet El Camino |
| 1964-1974 | Chevrolet El Camino |
| 1968-1974 | Chevrolet G10 Van |
| 1968-1974 | Chevrolet G20 Van |
| 1970-1974 | Chevrolet G30 Van |
| 1959-1974 | Chevrolet Impala |
| 1961-1974 | Chevrolet K10 Pickup |
| 1967-1974 | Chevrolet K10 Suburban |
| 1961-1974 | Chevrolet K20 Pickup |
| 1967-1974 | Chevrolet K20 Suburban |
| 1968-1974 | Chevrolet K30 Pickup |
| 1969-1972 | Chevrolet Kingswood |
| 1970-1974 | Chevrolet Monte Carlo |
| 1958-1961 | Chevrolet Nomad |
| 1969-1974 | Chevrolet Nova |
| 1955-1957 | Chevrolet One-Fifty Series |
| 1961-1966 | Chevrolet Suburban |
| 1969-1972 | Chevrolet Townsman |
| 1955-1960 | Chevrolet Truck |
| 1955-1957 | Chevrolet Two-Ten Series |
| 1967-1974 | GMC C15/C1500 Pickup |
| 1967-1974 | GMC C15/C1500 Suburban |
| 1967-1974 | GMC C25/C2500 Pickup |
| 1967-1974 | GMC C25/C2500 Suburban |
| 1967-1974 | GMC C35/C3500 Pickup |
| 1967-1974 | GMC G15/G1500 Van |
| 1967-1974 | GMC G25/G2500 Van |
| 1971-1974 | GMC G35/G3500 Van |
| 1970-1974 | GMC Jimmy |
| 1967-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1967-1974 | GMC K25/K2500 Pickup |
| 1967-1974 | GMC K25/K2500 Suburban |
| 1968-1974 | GMC K35/K3500 Pickup |
| 1971-1975 | GMC Sprint |
| 1971-1972 | Pontiac Ventura |
