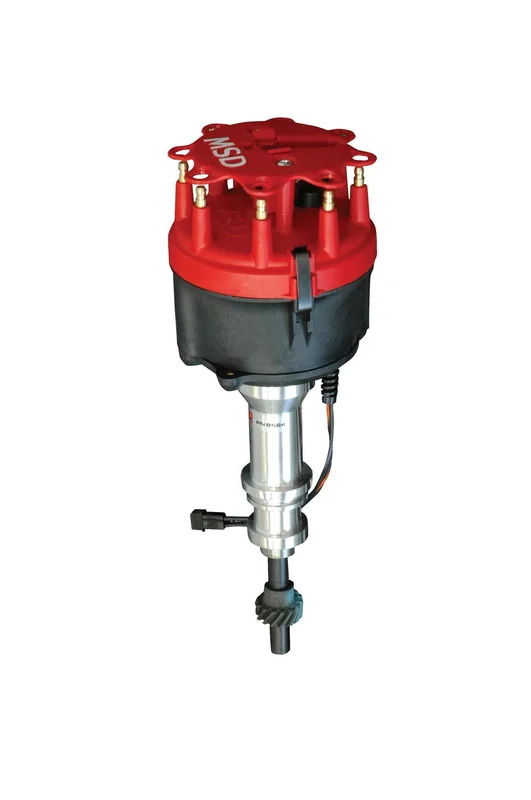

MSD Performance 8598 Ford 289/302 Billet Distributor

Description

Fits 289, 302 with steel gear for hydraulic roller cams. Must be used with an MSD 6, 7 or 8-series ignition. For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from chro-moly steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned.

• Nylon pads ensure smooth operation of the advance weights
• No CARB Exemption Order Number
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Advance weight pins are staked and tig welded to the plate
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Must be used with an MSD Ignition Control
• Mechanical advance assembly can be locked out for crank trigger systems
• CNC machined billet aluminum housing and Dupont Rynite base

Application Summary:
