Description
TeraFlex TJ: LCG Long Control Arms and LCG Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited models with 3-5? lifts. TeraFlex TJ: LCG Long Control Arms and LCG Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability for maximum performance on TJ Wrangler/Unlimited models with 3-5″ lifts. Can be added to an existing suspension lift. Must be used with LCG Long Arm Frame Brackets and/or Rear Axle Truss – NOT INCLUDED. On higher lifts, TeraFlex TJ: Lower LCG Frame Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms. CAD-engineered LCG Long Arm Frame Brackets and Triangulated 4-Link Rear Axle Truss are designed for maximum strength. The 1/4″-thick steel brackets are CNC laser cut and precision bent for accurate fitment. Frame brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Pro LCG and/or Enduro LCG Long Arm Suspension Systems.
- LCG Long Arm Brackets
- other components Same components found in our high-end Pro LCG
- corrosion resistance TeraFlex Lifetime Warranty against defects
- Re-centers axles in the wheel well for proper suspension movement
- Adjustable LCG Long Control Arms & Brackets balance front caster angle
- reduced NVH compared to other long arm kits Constructed from CNC laser cut
- shock load transferred through the LCG Long Control Arms LCG Long Arm Frame Brackets
- 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles
- Rear Axle Truss converts the stock 5-link rear suspension to a triangulated 4-link suspension for increased flex while eliminating interference
- Can also be used to increase wheelbase Full range of movement will not restrict articulation or flex off-road Rebuildable joints for easy maintenance
- precision bent 1/4″ steel Frame brackets locate using the factory belly pan skid plate bolt holes then stitch welded Pro LCG Triangulated 4-Link Frame Brackets

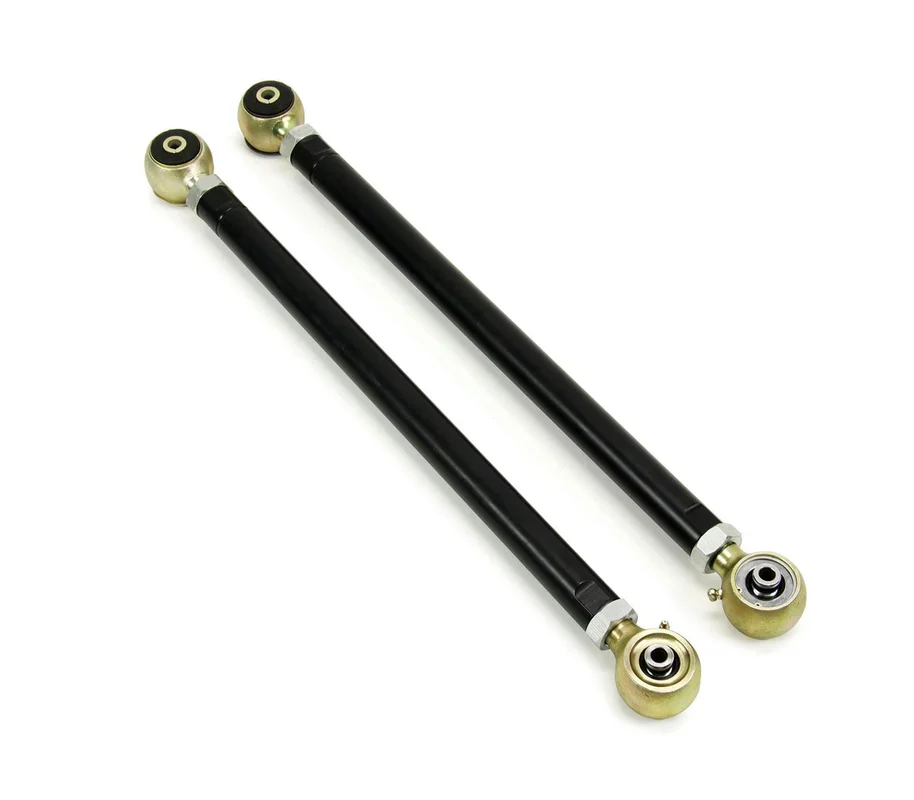

- TJ LCG Long Control Arms
- DOM tube for maximum strength TJ Control Arms (all)
- Alpine Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength On higher lifts
- optimize rear pinion angle
- provides superior durability
- Rear Axle Truss are gusseted and reinforced for superior strength
- Alpine Long Arm Brackets are gusseted and reinforced for superior strength
- Premium black e-dipped coating on tube
- reduces bushing stress during extreme droop
- Enduro LCG Long Arm Suspension Systems TJ Control Arms (all)
Application Summary:
| Year | Make/Model |
|---|---|
| 1997-2006 | Jeep Wrangler |
