Description

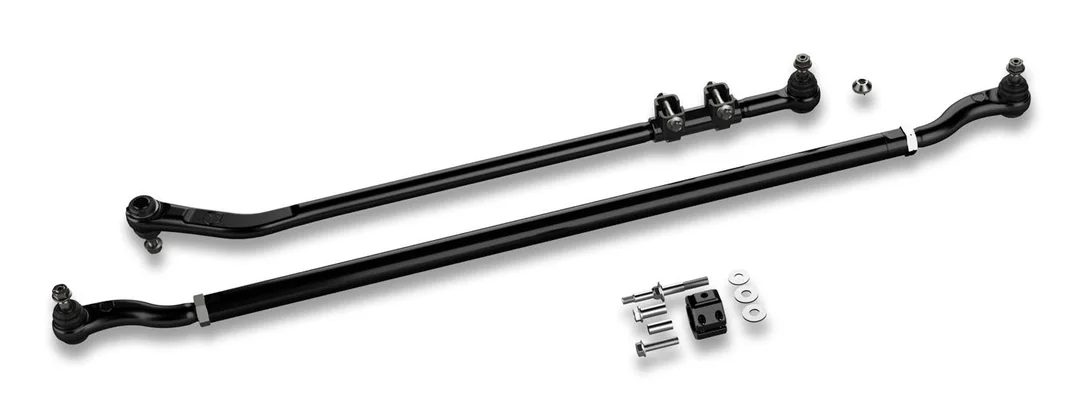

The TeraFlex JK: HD Forged Drag Link Flip Kit & HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models. The TeraFlex JK: HD Forged Drag Link Flip Kit & HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models. ?Flipping” the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.
- HD Forged Drag Link Flip Kit (# 1853930)
- Joint is pressed into rod end housing and secured w/ snap ring
- Provides clearance for factory 17″ wheels HD Chromoly Tie Rod Kit (# 1853910)
- HD 1-5/8″ O.D. 4140 heat treated chromoly steel
- More than 200% stronger than factory tie rod
- Forged tie rod housing designed specifically for JK Wrangler/Unlimited
- Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
- Features adjustable rod end preload tension to ensure long-term durability
- The joint is pressed into the rod end housing and secured w/ a snap ring
- Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
- Provides clearance for factory 17″ wheels
- Relocates drag link over the knuckle to the top of the knuckle?s steering arm (Left-Hand-Drive only)
- Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160) Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)
- Fits heavy-duty 1-5/8″ tie rod
- 6061-T6 aluminum clamp and forged 10.9 grade stud
- Moves steering stabilizer up nearly 2.5″ to help reduce damage to the stabilizer shaft or body
- Axle end joint is flipped 180 degrees to be pressed down into the top of the knuckle
- Bolts directly to new High Steer Knuckle (not included)
- 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
- 1.25″ O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
- Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
- Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
- Adjustable joint preload tension to ensures proper long-term durability
Application Summary:
| Year | Make/Model |
|---|---|
| 2007-2017 | Jeep Wrangler |
| 2018 | Jeep Wrangler JK |
